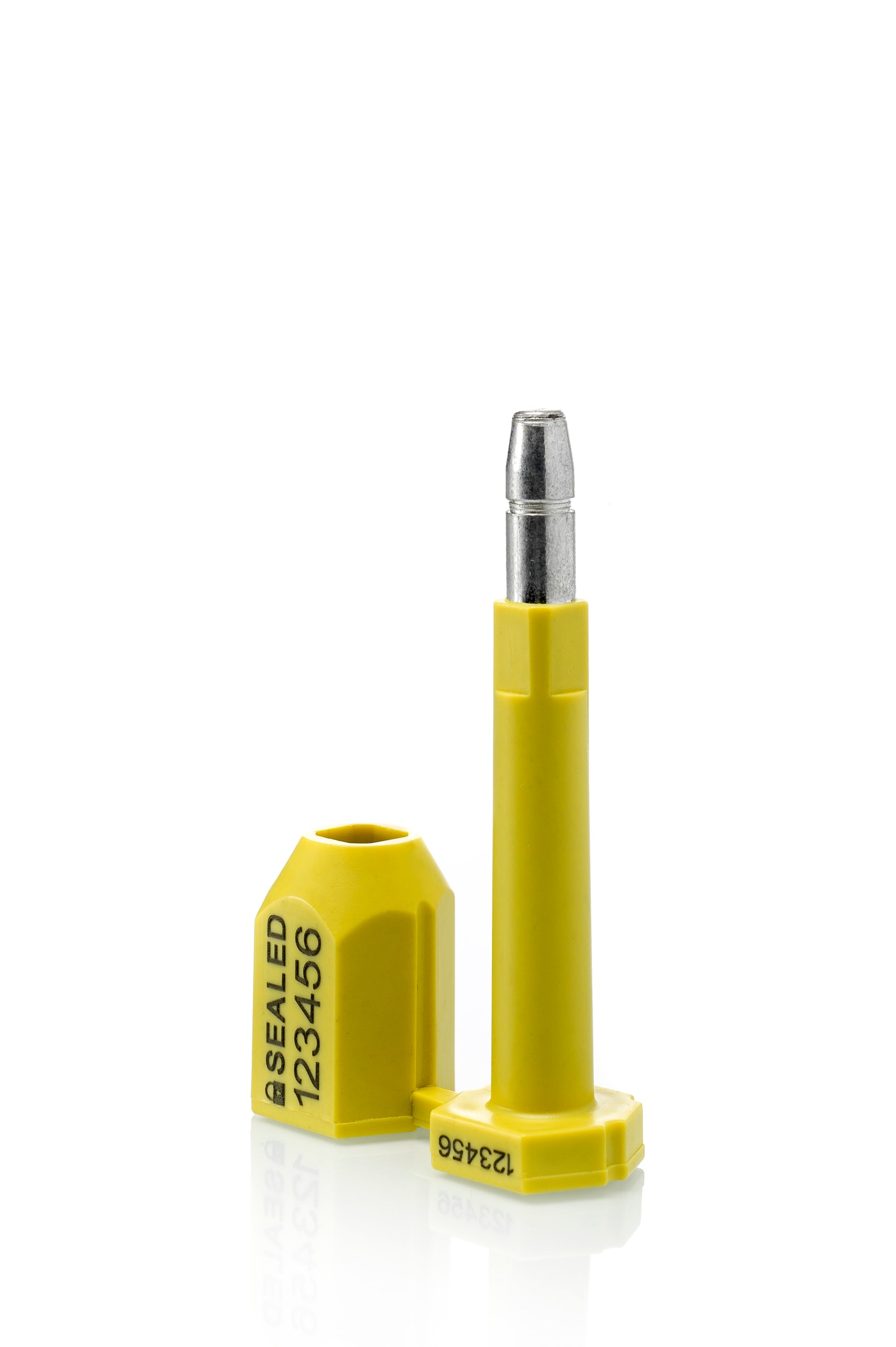

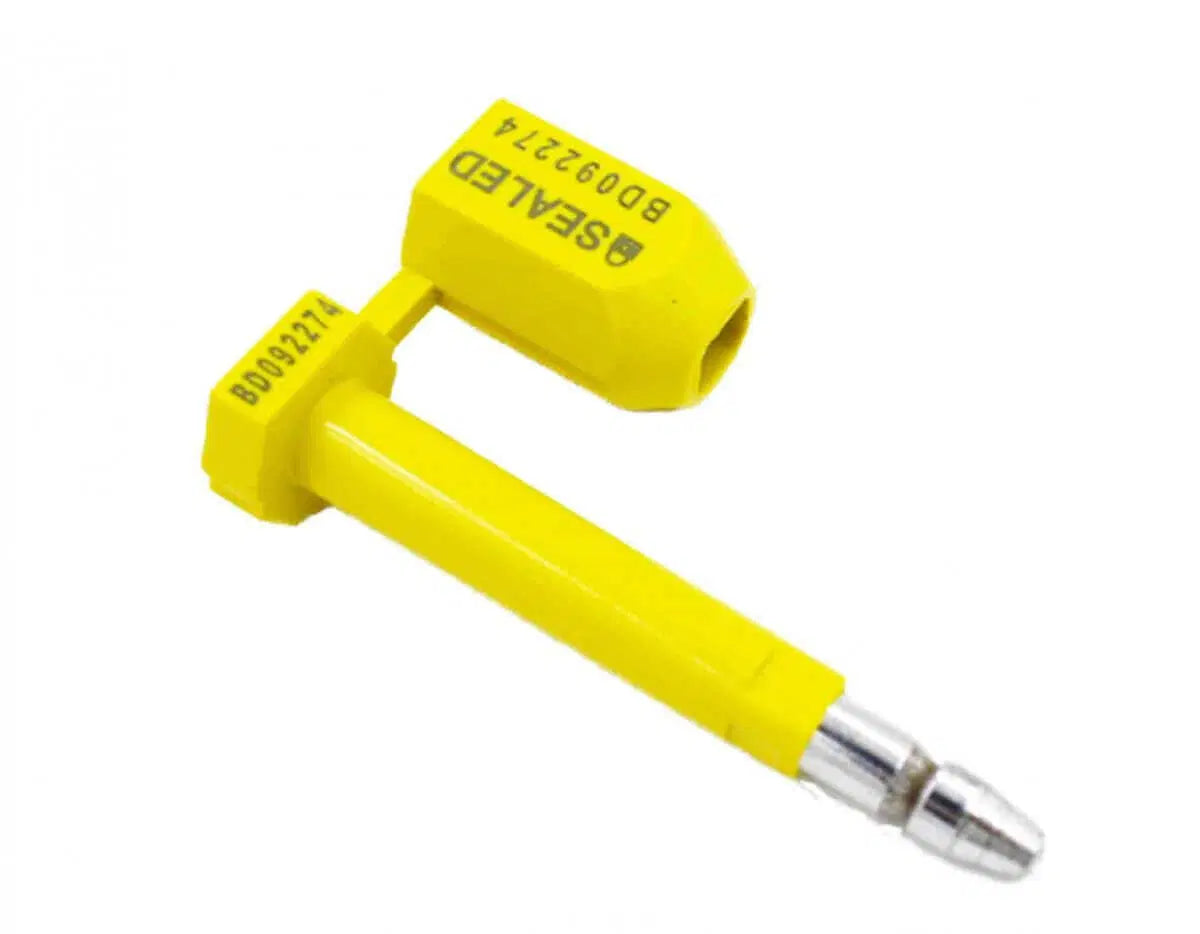

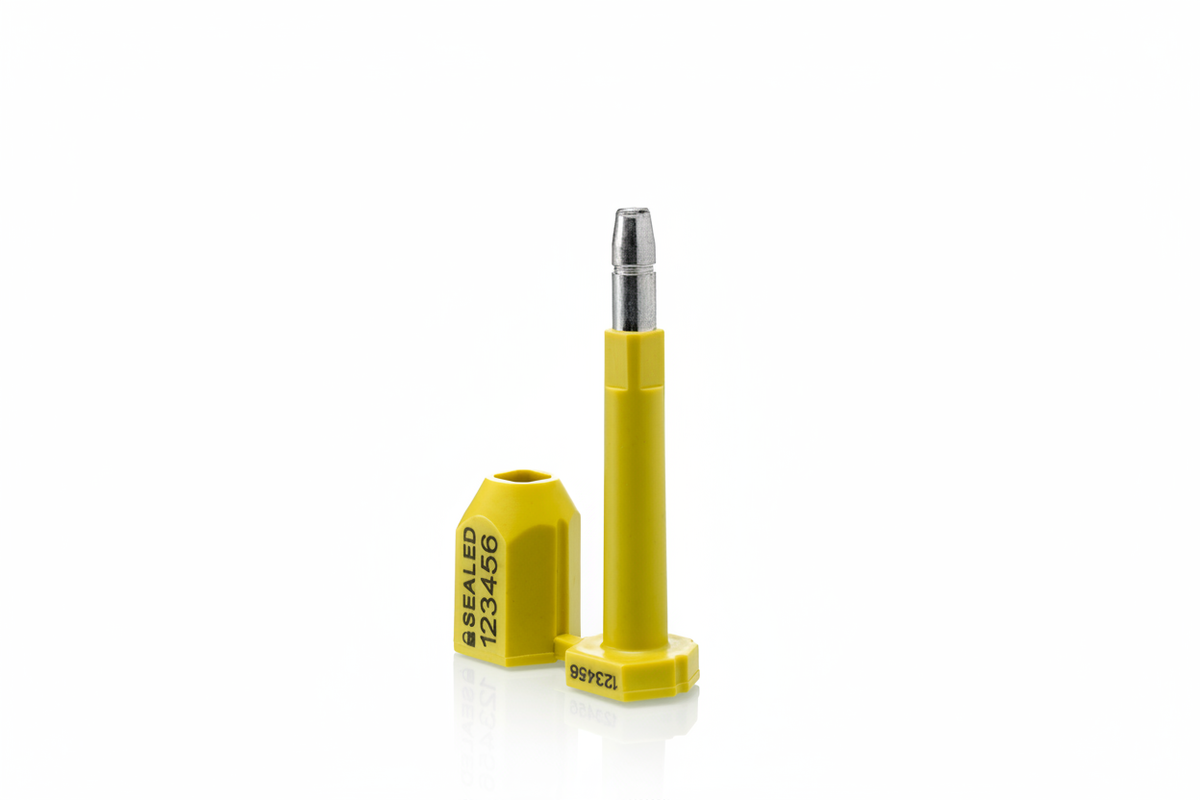

Bolt Seal 3.75
Request for Quote
Couldn't load pickup availability
High-quality Bolt Seal equipped with anti-spin construction such that a locked bolt cannot be rotated out for optimal tamper evidence. ISO 17712:2013 certified and CTPAT compliant. Removal by tool.
Product Type: Bolt Seal
Stier SKU: A_BS-30C

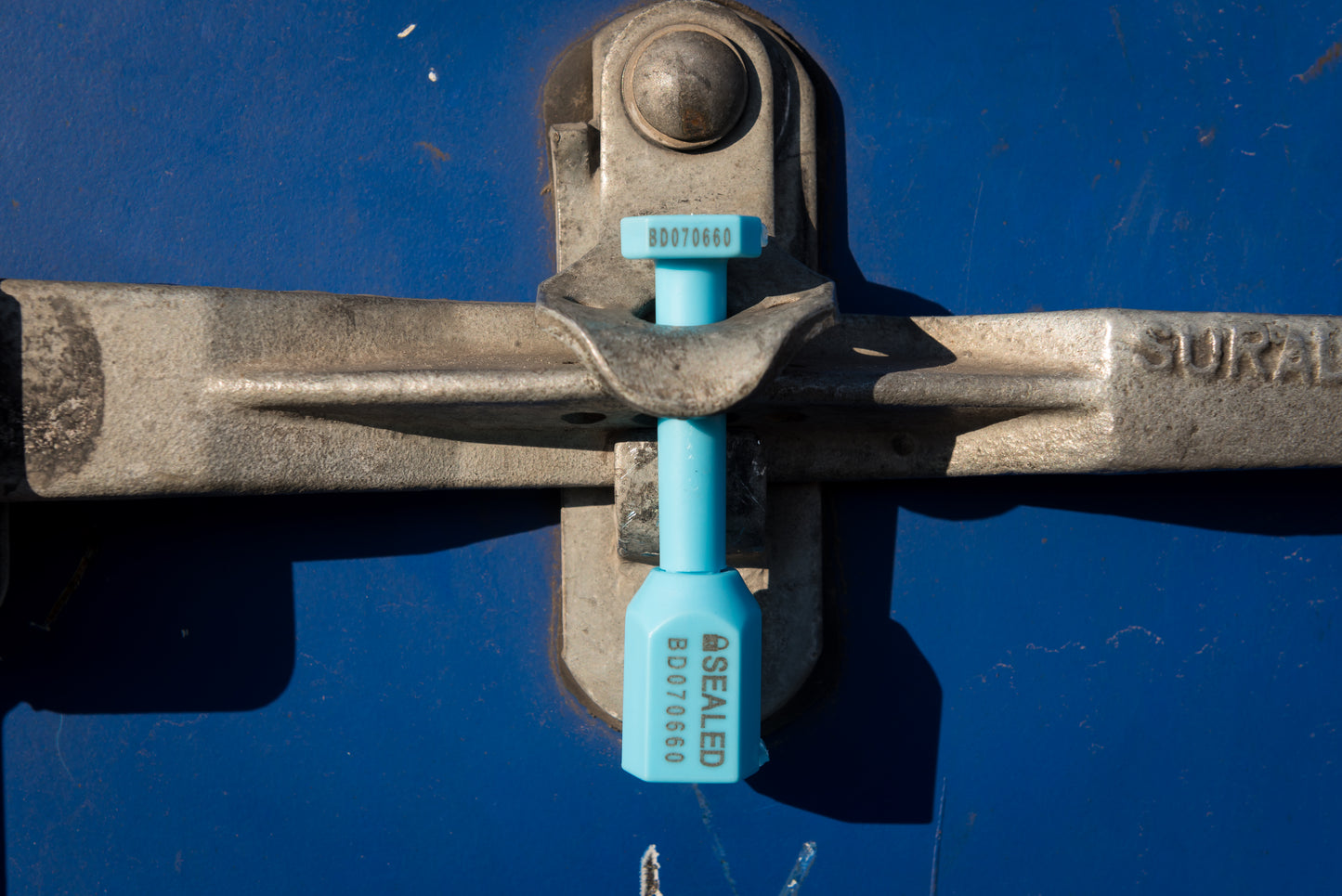

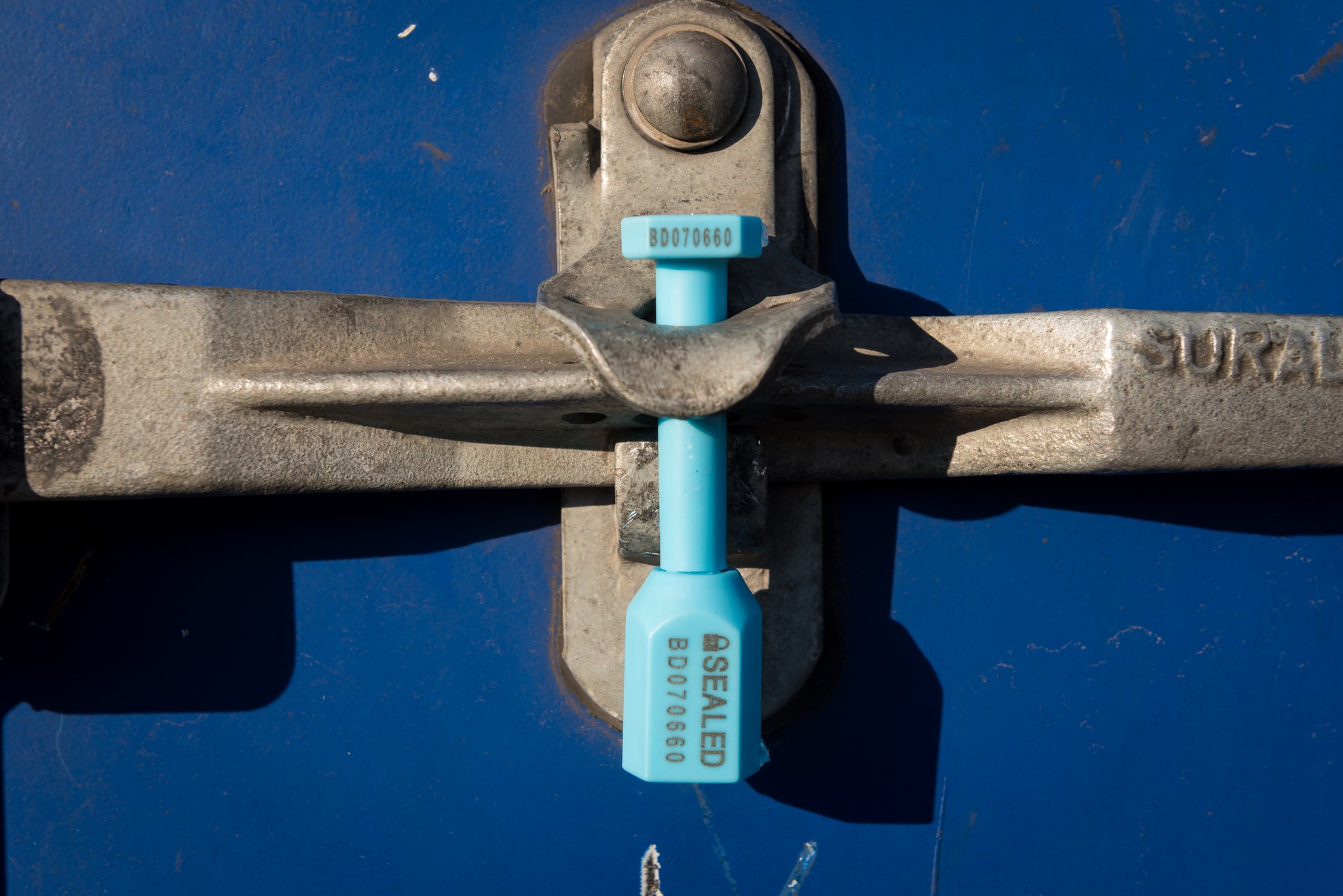

Application: Container and trailer door latches
Specification
Seal classification: High Security Seal
Material: Galvanized low carbon steel wrapped with ABS
Dimensions: 3.75 in total length: 0.31 in steel pin with 3.43 in shaft; 1.34 x 0.83 in hex bus
Printing area: 1.06 x 0.63 in
Breaking Strength: Approx. 4,409 lbs
Options
Numbering: Up to 9 digits
Print customization: Logo, text & barcode
Barcode: 128, 2/5 Interleaved, Type 39
Colors: White, yellow, orange, blue
Optional features: Marking on pin & removable sticker
Packaging
Quantity: Case-200 pieces, MOQ- 10 pieces
Weight: Approx. 29.8 lb.
Dimensions: 16.9 x 13.0 x 5.5 in
Customization
- Box dimensions & quantity from 10,000 pieces
- Other colors from 10,000 pieces
- Custom mold design from 50,000 pieces
Features of Bolt Seal 30
Uniquely numbered to prevent against fraud and manipulation. This number is applied to both pin and barrel.
When closed the seal is completely encapsulated in ABS plastic so any attempt at tampering will result in obvious destruction.
The number on the high security seal is always clearly visible.
