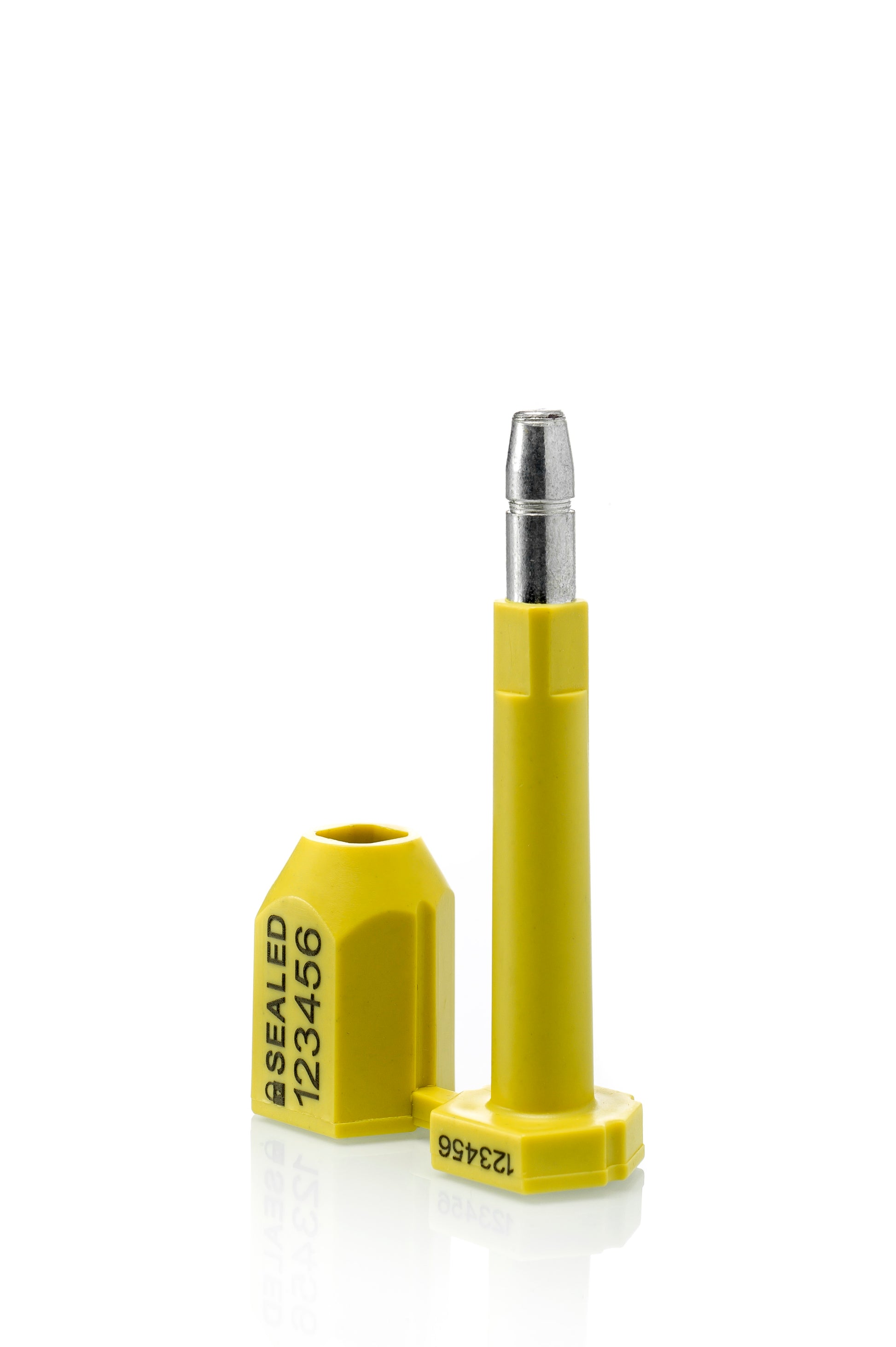

High-security bolt seal with removable security sticker and barcode for easy transfer to transport documents. ISO 17712:2013 certified and CTPAT compliant. Removal by tool.

Product Type: Bolt Seal

STiER SKU- A_BS-30C_YE_RSS

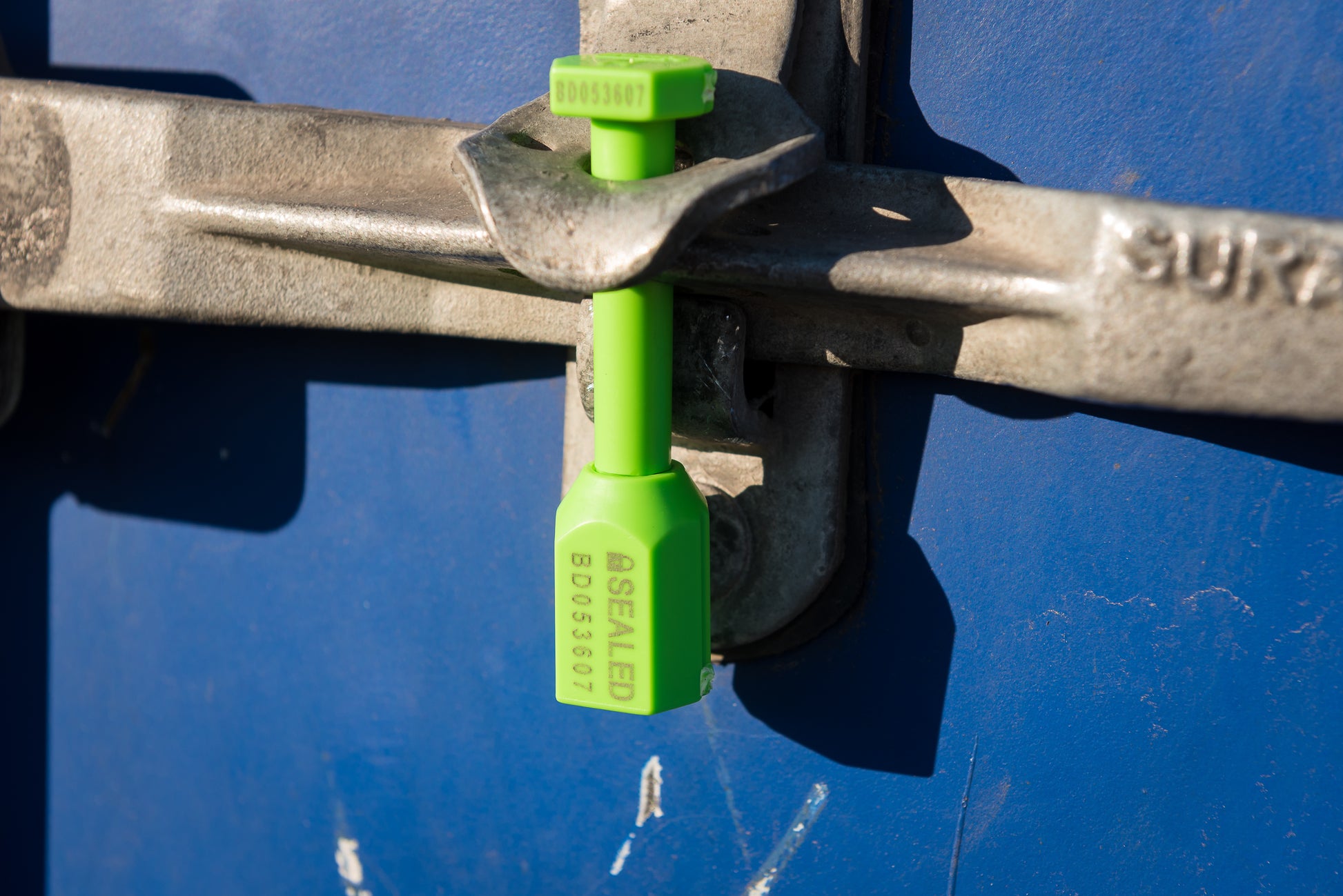

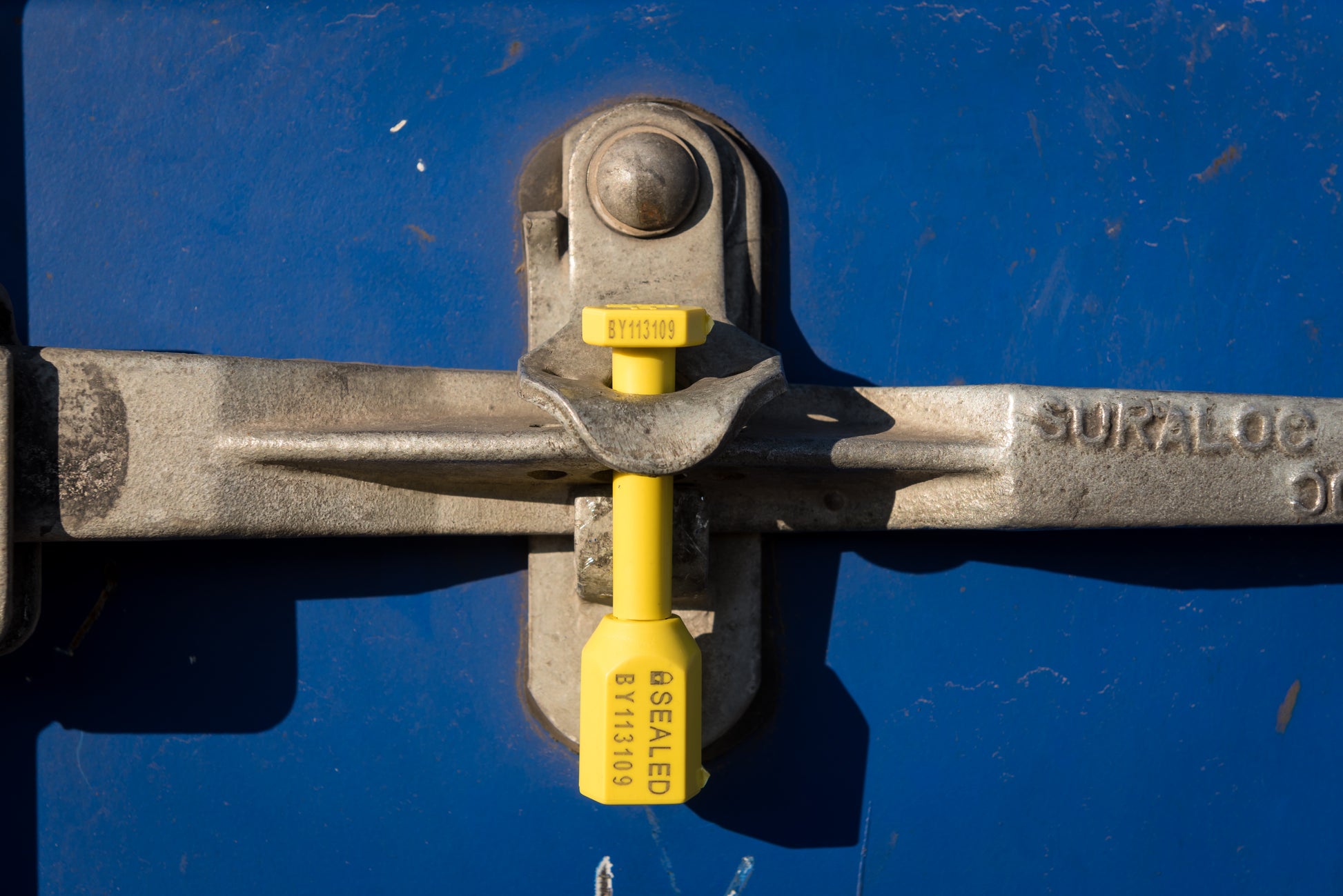

Application: Container and Trailer Door Latches

Specification:

Seal classification: High Security Seal

Material: Galvanized low carbon steel wrapped with ABS

Dimensions: 3.75 in total length: 0.31 in steel pin with 3.43 in shaft; 1.34 x 0.83 in hex bus

Printing area: 1.06 x 0.63 in

Breaking Strength: Approx. 4,409 lbs

Options

Numbering: Up to 9 digits

Print customization: Logo, text & barcode

Barcode: 128, 2/5 Interleaved, Type 39

Colors: Yellow

Optional features: Marking on pin & removable sticker

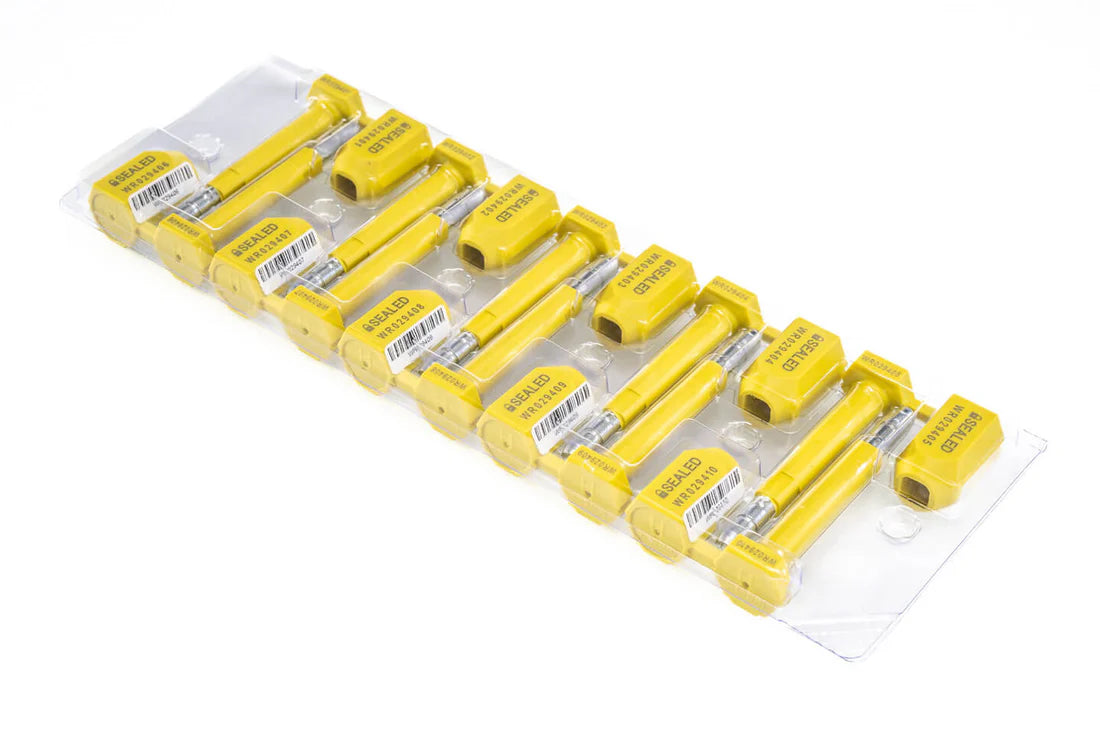

Standard Packaging

Quantity: Case- 200 pieces, MOQ- 10 pieces

Weight: Approx. 29.8 lb.

Dimensions: 16.9 x 13.0 x 5.5 in

Customization

- Box dimensions & quantity from 10,000 pieces

- Other colors from 10,000 pieces

- Custom mold design from 50,000 pieces

Features of Bolt Seal 30 with Removable Label

Uniquely numbered to prevent against fraud and manipulation. This number is applied to both pin and barrel.

When closed the seal is completely encapsulated in ABS plastic so any attempt at tampering will result in obvious destruction

Anti-spin construction to ensure the locked bolt seal cannot be rotated out.

The number on the high security seal is always clearly visible.
