A temperature logger can show what happened to a shipment's thermal environment; a seal number cannot. Yet if a package or transport closure is disturbed, the temperature record alone may not identify where custody changed.
In pharmaceutical cold chain packaging, qualified thermal protection, temperature monitoring, and serialized tamper-evident seals serve different but complementary roles. Packaging and monitoring address temperature conditions, while a seal can make interference at a secured access point visible and connect a unique seal ID to shipment handoff records. It does not measure temperature or prove product quality.
That distinction helps quality, logistics, and security teams build records that explain both environmental conditions and physical custody. Linking the seal ID with serialized seal tracking records adds a shipment-level reference; it does not replace product-lot traceability or temperature documentation. The first step is to understand what the packaging system is designed to protect, and which evidence each control can provide.
Contact STiER to discuss serialized seal options for pharmaceutical shipment controls.
How Does Pharmaceutical Cold Chain Packaging Protect Product Integrity?
A pharmaceutical shipment can arrive with its outer package intact and still lack evidence that the required temperature conditions were maintained. The reverse is also possible: a temperature record may show acceptable conditions while a closure shows signs of interference. Packaging controls are most useful when each is assigned a distinct purpose, then connected through shipment records and handoffs.
What does the thermal packaging control?
The thermal system is selected and managed to protect the product under the shipment's defined conditions. Its performance depends on the packaging configuration and the handling and environmental conditions it is designed to address. Temperature indicators or monitoring devices provide information about temperature conditions; the packaging itself does not document those readings. Teams should define packaging qualification, monitoring methods, and excursion review in their own quality procedures rather than treating a security seal as evidence of temperature performance.
For warehousing, 21 CFR 211.142 calls for written procedures that include appropriate temperature, humidity, and light conditions so drug identity, strength, quality, and purity are not affected. This is a warehousing-procedure requirement, not a specific shipper qualification or seal mandate. The existing cold-chain article on temperature-controlled cargo monitoring discusses the separate roles of monitoring and security at a broader logistics level.
What do the physical and tamper controls protect?
Physical packaging protects the product and its immediate container from handling and transport exposure. At an access point, a tamper-evident seal has a narrower job: it can make interference more apparent and provide a unique identifier for records. A seal does not prevent every form of access, establish that a package stayed within temperature limits, or confirm that the contents remain suitable for use. Choose a seal only after confirming that its format fits the actual closure and that staff can inspect it at the relevant handoff.
How do custody records connect the controls?
At dispatch and receipt, teams can record the package or shipment identifier, the seal number, seal condition, handoff details, and the applicable temperature-monitor or indicator record. These records answer different questions: the temperature evidence concerns conditions over time. While the seal number and observed condition help document whether a secured access point appears to have been disturbed. Neither should be substituted for the product's lot or serialization records.
A consistent handoff process also makes exceptions easier to identify. If the recorded seal number does not match, or the seal appears damaged, staff can preserve the records and follow the established escalation process. If a temperature alert occurs, the responsible quality team reviews the monitor data under its procedures. Keeping those findings separate avoids treating an intact seal as proof of thermal control, or a normal temperature record as proof of uninterrupted custody.
How Do Temperature Control and Tamper Evidence Work Together?
A shipment can remain within its assigned temperature conditions and still arrive with an unexplained change to a secured closure. It can also arrive with an intact seal after an excursion. These are different questions, so pharmaceutical cold chain packaging controls should create separate evidence for thermal conditions and access-point integrity.
What does temperature monitoring show?
A calibrated temperature monitor or data logger records readings over time to help the responsible quality team assess conditions during storage or transit against applicable procedures. The record is meaningful only in context: teams need to know which device was used, when and where it was placed, and whether it was functioning as intended. The World Health Organization's guidance separately addresses temperature monitoring and control, qualification of temperature-controlled stores, and calibration and verification of monitoring devices. Those are quality-system responsibilities, not functions performed by a security seal. Read WHO guidance on storage and transport of temperature-sensitive pharmaceuticals.
For U.S. drug warehousing, 21 CFR 211.142 requires written warehousing procedures that include appropriate temperature, humidity, and light conditions so that drug products are not affected. This is a warehousing procedure requirement. It does not prescribe a particular shipment seal, nor does it establish that a seal qualifies thermal packaging or validates a shipping configuration.
What does a serialized seal record show?
A tamper-evident seal addresses a different control point: whether a secured access point appears to have been disturbed, and which uniquely identified seal was applied. A seal number can be recorded alongside shipment references, the applying party, handoff details, and inspection observations. At receipt, comparing the recorded number with the seal present can help identify a discrepancy for review. Neither an intact seal nor a matching number proves that the product stayed within its temperature requirements, remained suitable for use, or was handled correctly inside the package.
How should the records be reviewed together?
Keep monitor data and seal records linked to the same shipment, but do not merge their meanings. A monitor record speaks to measured conditions over its recording period. Seal condition and serial records speak to closure identity and observed access integrity at documented points in custody. Together, they give quality and logistics teams more useful context than either record alone.
If a monitor indicates a possible excursion, or a seal is missing, damaged. Or does not match its record, follow the organization's written procedures for holding and assessing the shipment. Preserve the available readings and handoff documentation, record observations, and refer disposition to the designated quality authority. A seal discrepancy is a reason to investigate access integrity, not proof of temperature abuse. Likewise, an acceptable temperature record does not resolve an unexplained seal discrepancy. Keep conclusions within what each control actually measures.
How Can Teams Build Seal Controls Into Packaging Handoffs?
A seal control works when each person handling a shipment can tell what was secured. Which identifier to check, and what to do if the record and physical closure do not match. Put the steps in the applicable SOP, assign responsibility at each transfer, and keep tamper evidence separate from temperature evidence. A seal can indicate apparent disturbance at a secured access point; it does not measure temperature or establish product quality. Define who issues seals, how numbers are captured, and how unused or voided seals are accounted for, so the record begins before the shipment leaves.
- Define the security boundary. Identify the access point the seal is meant to secure, such as an outer transport closure or a compatible package closure. Specify where the seal goes, who may apply or remove it, and how authorized opening is documented. Do not assume an outer-container seal secures the insulated shipper inside. Make the boundary clear in handoff instructions so the receiving team inspects the same closure the sender recorded.
- Select a compatible seal. Match the format to the closure geometry and the team's inspection and removal procedures. Confirm that staff can apply it consistently and read its unique identifier. Do not select a seal for a qualified thermal shipper without confirming the closure's compatibility through the responsible packaging and quality teams. Include practical inspection and removal needs in the selection, rather than treating serial numbering alone as proof of fit.
- Record the identifier against the shipment. Log the seal number with the shipment reference, date and time, applicable origin or destination, and responsible handoff. Keep it distinct from the drug product lot number. Under 21 CFR 211.150, distribution procedures must support readily determining the distribution of each drug lot to facilitate recall. A seal ID can complement shipment records, but it is not a substitute for lot-distribution records. Use a consistent record location that the next custodian can access, and check that the seal number is legible before the shipment departs.

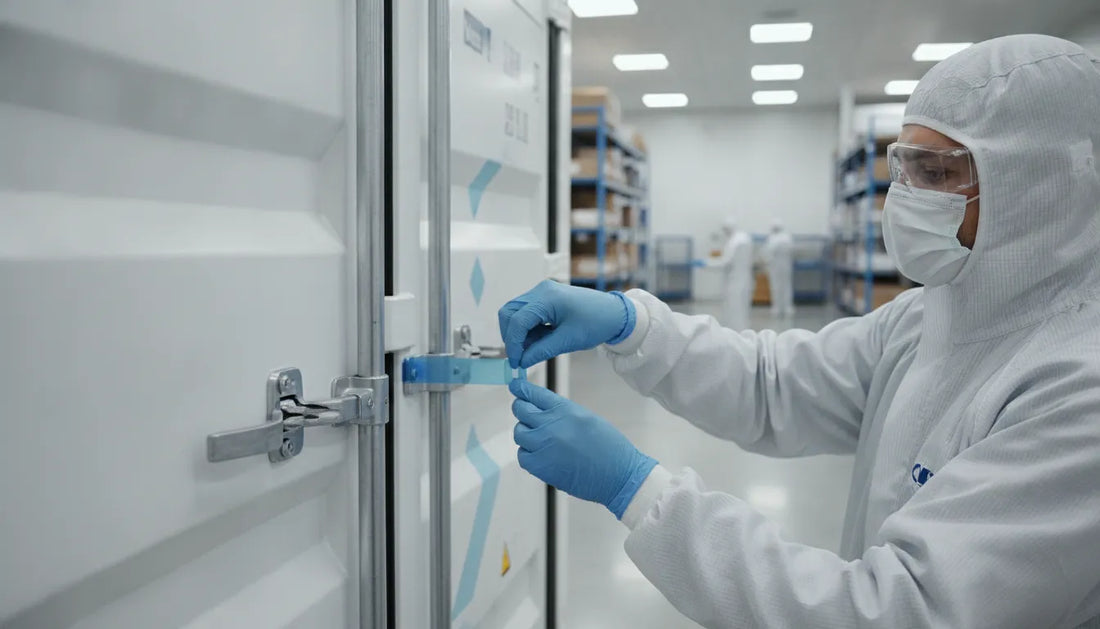

- Apply and verify. The authorized person secures the defined closure, checks that the seal is properly engaged, and records its number. A second check can be included where the site's procedure requires it. Keep any temperature logger or indicator in its separate monitoring workflow; the seal does not replace it.
- Reconcile at transfer. The receiving person compares the physical seal and its condition with the shipment record before accepting custody. Record the inspection, time, and handoff according to the SOP. Resolve a mismatch before treating the seal record as reconciled.
- Document exceptions and escalate. If the seal is missing, damaged, or has an unexpected number, document the observed condition and notify the designated quality or security contact. Follow the organization's hold, investigation, and notification procedures. Preserve relevant shipment and monitoring records; do not infer temperature exposure or product condition from seal appearance alone.
Discuss serialized seal options for your pharmaceutical shipment controls.
Which Serialized Seal Details Matter for Pharmaceutical Shipments?
Each control should answer a different operational question. A temperature monitor records conditions over time. A tamper-evident seal identifies a secured access point and can show evidence of interference. A product-lot record identifies the drug batch for distribution traceability. Keeping those records distinct prevents a seal number from being mistaken for a lot number or temperature result.
| Record or control | What it identifies or evidences | What it does not prove | Where its record belongs |
|---|---|---|---|
| Temperature monitor | Temperature readings or indicators for the monitored shipment or package over a defined period. | It does not establish whether a door, closure, or access point was disturbed, and does not by itself identify the drug lot. | In the shipment's temperature-control record, linked to the shipment and reviewed under the responsible quality procedure. |
| Serialized tamper-evident seal | A unique seal ID assigned to a specified closure, plus its recorded application and inspection state. | It does not measure temperature, validate thermal packaging, establish product quality, or replace product tracing. | In the seal-control or custody log, linked to shipment ID, package or closure, handoff, and inspection or removal events. |
| Product-lot record | The drug lot and its distribution information, supporting retrieval of where that lot was distributed. | It does not show package temperature history or whether a particular closure was disturbed. | In the applicable product distribution and lot-traceability record, cross-referenced to shipment records when useful. |
For a seal to be useful, first confirm that its format works with the specific closure without compromising the package or its qualified thermal configuration. A seal selected for a trailer latch is not automatically appropriate for a thermal shipper. Confirm the attachment point, available clearance, application method, and how authorized staff will remove it. The packaging and quality owners should approve compatibility; the seal supplier's product description alone cannot establish it.
Use an ID that is unique within the organization's control process and can be read at each handoff. Record the ID against the shipment, the secured closure, the person or location applying it, and the date or event. Receiving staff should compare the physical ID with the record, inspect the seal and closure for visible damage or mismatch, and document the result. If removal is authorized, record who removed it, when, why, and what replacement seal was applied. Follow site procedures for discrepancies; do not treat an intact seal as proof that temperature remained in range.
STiER's CSL-1.8 cable seal is laser-marked with a unique serial number. Its BS-30C RSS bolt seal supports customized numbering up to nine digits, and its removable barcode sticker can be attached to documents. These are examples of identification and record-linkage options, not confirmation that either seal fits or qualifies a pharmaceutical thermal shipper. Select only after reviewing the intended closure.
CTPAT seal-control practices provide a useful cargo-security reference for unique numbering, written verification procedures, training, and logs. They are not a universal pharmaceutical packaging mandate. See the CTPAT cargo seal compliance guide for that specific context.
How Should Quality Teams Document Exceptions and Review Packaging?
A useful record set lets a reviewer reconstruct what was packed, which controls were applied. Who held the shipment, and what happened when something did not match the procedure. The site SOP should define responsibilities for packaging qualification, shipment release, seal issuance and verification, custody transfers, and exception escalation. Quality should own or approve packaging qualification within the organization's quality system; the seal supplier does not qualify a thermal shipper or determine acceptable temperature conditions.
Keep the temperature evidence and tamper-evidence records distinct. Retain the applicable monitor or logger record under the temperature-control procedure, and record the seal's unique ID in the shipment or custody log. Link both records to a shared shipment reference, but do not treat the seal number as a product-lot identifier or as evidence of temperature. FDA distribution procedures under 21 CFR 211.150 address distribution records that support determining where each drug lot was distributed to facilitate recall; the seal ID can supplement shipment-level traceability, not replace lot records.
At each custody transfer, the SOP can require the releasing and receiving parties to record the shipment reference. Date and time, seal ID and observed condition, and any discrepancy. The receiving party should verify the recorded ID and condition against the handoff information. A mismatch, missing seal, visible damage, or temperature-monitor alert should trigger the defined exception process. For cross-border movements, teams may also need to distinguish packaging controls from border and cargo-seal requirements; see this overview of port-of-entry cargo seal requirements.
When an exception occurs, document the observation and time, preserve relevant monitor and seal records, and notify the designated quality contact. Follow the site's SOP for containment, including whether to hold or quarantine the shipment or product while quality evaluates the evidence. The investigation should reconcile the temperature record, seal ID log, custody history, packaging configuration, and applicable shipment documents. Quality should record its assessment, disposition, and any corrective action before the shipment returns to normal handling. Do not assume a seal discrepancy proves a temperature excursion, or that an acceptable temperature record rules out interference.
For each packaging review, retain the approved configuration and its qualification records alongside the current procedure and change history. Review discrepancies for recurring patterns, such as gaps in ID reconciliation or incomplete handoff entries, and update training or controls through the quality system. The review should establish what the records show and what remains unknown, rather than infer product condition from a single indicator.
Contact STiER to discuss serialized seal options for your shipment controls.
Frequently Asked Questions
Can a tamper-evident seal replace a temperature monitor?
No. A seal records the condition of a secured access point and its unique identifier, while a temperature monitor records temperature conditions. Use each for its intended purpose, then associate the seal number and monitoring record with the same shipment documentation.
What shipment information should be linked to a seal number?
Record the seal identifier with the shipment or dispatch reference, the point of application, and the relevant handoff or verification record. Keep product-lot distribution traceability in its proper system; a seal number is a complementary shipment control, not a lot identifier. FDA distribution procedures address determining distribution by drug lot in 21 CFR 211.150.
Does a seal qualify or validate a thermal shipper?
No. Packaging qualification and temperature-control procedures belong to the responsible organization's quality system. A seal does not establish shipper performance, demonstrate that product stayed within its required conditions, or replace monitoring records and review of excursions.
What FDA packaging requirements should teams consider?
Requirements depend on the product, packaging system, and applicable rules, so teams should confirm them with qualified regulatory and quality personnel. FDA's container closure systems guidance describes FDA's current thinking on packaging human drugs and biologics and states that the guidance does not bind FDA or the public.
